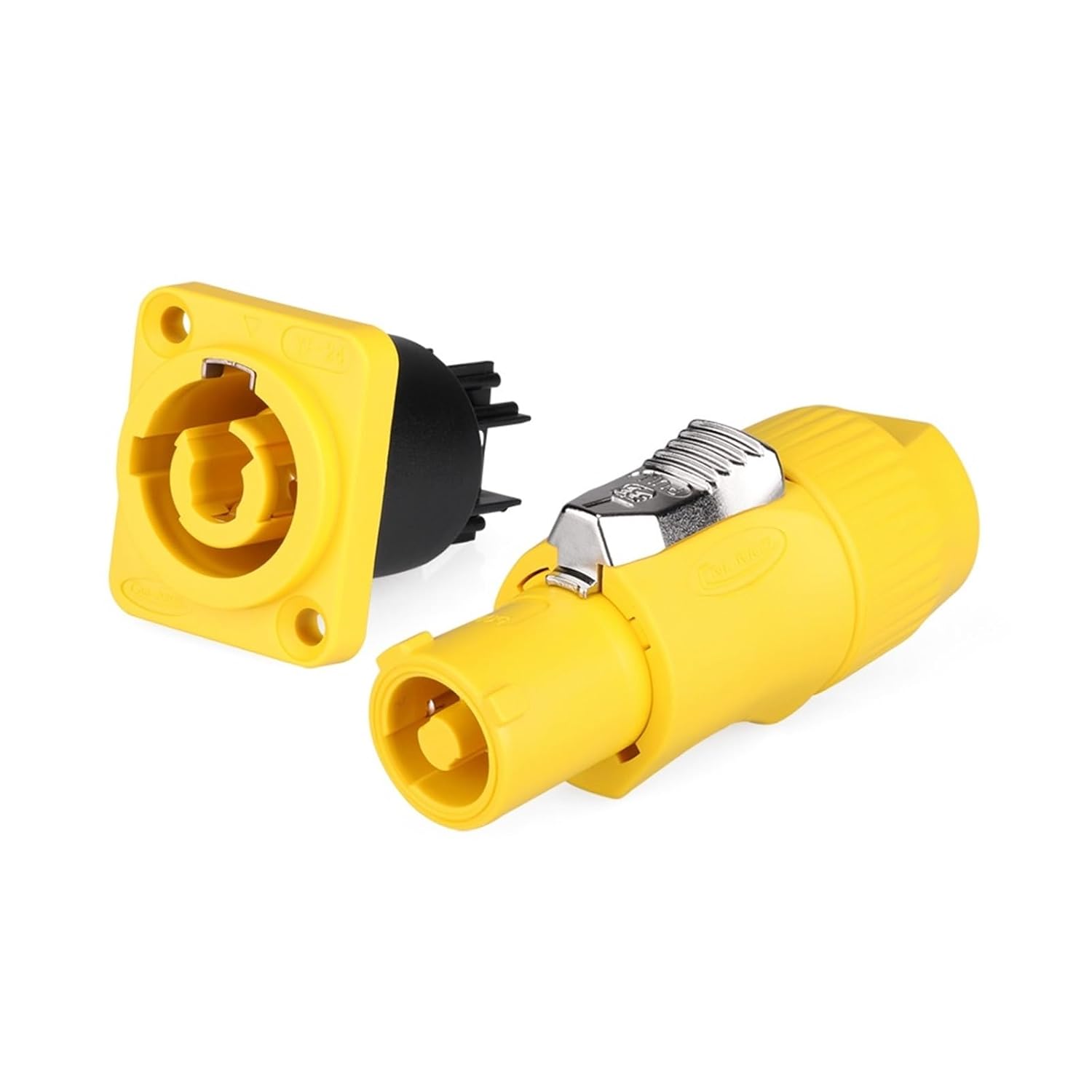

1Pcs Industrial Connector 3 Pin Powercon 20A Waterproof M24 Cable Electric Wire LED Automotive Power Connector(Socket D Only)
Product details
| Management number | 222311517 | Release Date | 2026/05/04 | List Price | $15.84 | Model Number | 222311517 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ConnectorsIndustrial Connector 3 Pin Powercon 20A Waterproof M24 Cable Electric Wire LED Automotive Power ConnectorFeatures: 1.Latch design system 2.Protection level up is IP65 when connected 3.Panel mount installation 4.The Connnector uses a lock screw connection 5.Multiple color distinctions 6.Left and Right Sockets SpecificationsConnecting modeLatching Lock connectProtection levelIP65/IP67Cable specification2.5mm2 ~ 4mm2 /14~12AWGDiameter range8mm ~12mmContact diameter×Qty2.0×3Current rating(A)20ATemperature rise20A contact temperature below 3025A contact temperature below 4030A contact temperature below 50Operating voltage(AC.V.rms)500VWithstanding voltage(AC.V)1min2500VContact resistance<;3mInsulation resistance>500MDurability500 mating&unmating cyclesTemperature rating40C80CMethod of connecting cableSolderAssembly wireSolderingPrevent the combustion levelUL94V0MaterialInsulated partsHighperformance engineering plasticsHardware metalZinc alloypearl hard chromium)Contact pinCopper alloy(gold-plated 4U)SpringStainless steelSealingSilica gelMain characteristicsSealed against dust and fluid (IP65/IP67)Vibration resistance, impact resistance, stretching resistancesocket with coverApplication industriesStage equipment - The smart grid - ServerSolar energy equipment - Ship equipmentElectric power equipment - Vehicle equipmentCommunications equipment - Heavy machinery==========Hign-concerned Chemical : NoneModel Number : YF-24Cable specification : 2.5mm²~4mm²/14~12AWGDiameter range : Tolerance 8mm~12mmContact diameter *number : Tolerance 2.0*3Insulation resistance(Min.) : 500 m omegaContact resistance(Max.) : 3 m omegaCurrent rating : 20AOperating voltage (AC.V.rms) : 500VProtection Class : IP65Working temperature : -25 degrees Celsius~85 degrees CelsiusDurability(Min.) : 500 times
- Connectors
- Industrial Connector: Designed for high durability and performance in demanding environments.
- 3 Pin Powercon 20A: Supports high current applications, ensuring stable power delivery.
- Waterproof M24 Cable Connector: Offers excellent protection against moisture, ideal for outdoor and harsh conditions.
- LED Automotive Power Connector: Perfect for automotive lighting and other electrical applications.
- Easy Installation: Simplifies the setup process, saving time and effort.
| Department | Unisex Adults |
|---|---|
| Item Weight | 1.76 ounces |
| Manufacturer | SEIRNHaBb |
| Item model number | SEIRNHaBb |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
